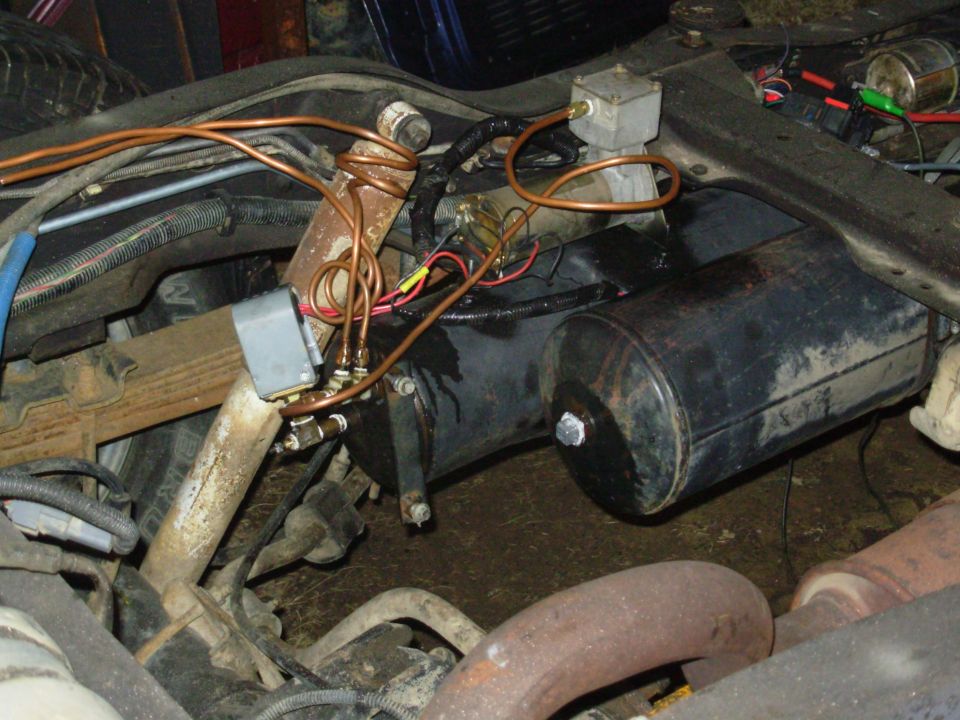

16oba21.jpg It finally occurred to me that the pressure switch wouldn't work if it was attached to one compressor, so I moved it.  I also figured out how to make the check valves actually work right, so the system is ready for any extra compressors I feel like installing.  This one takes about 10min to go from 0 to 144psi.
16oba21.jpg | Hits: 1414 | Posted on: 11/18/12 | View original size (2.35 MB)

It finally occurred to me that the pressure switch wouldn't work if it was attached to one compressor, so I moved it. I also figured out how to make the check valves actually work right, so the system is ready for any extra compressors I feel like installing. This one takes about 10min to go from 0 to 144psi.
