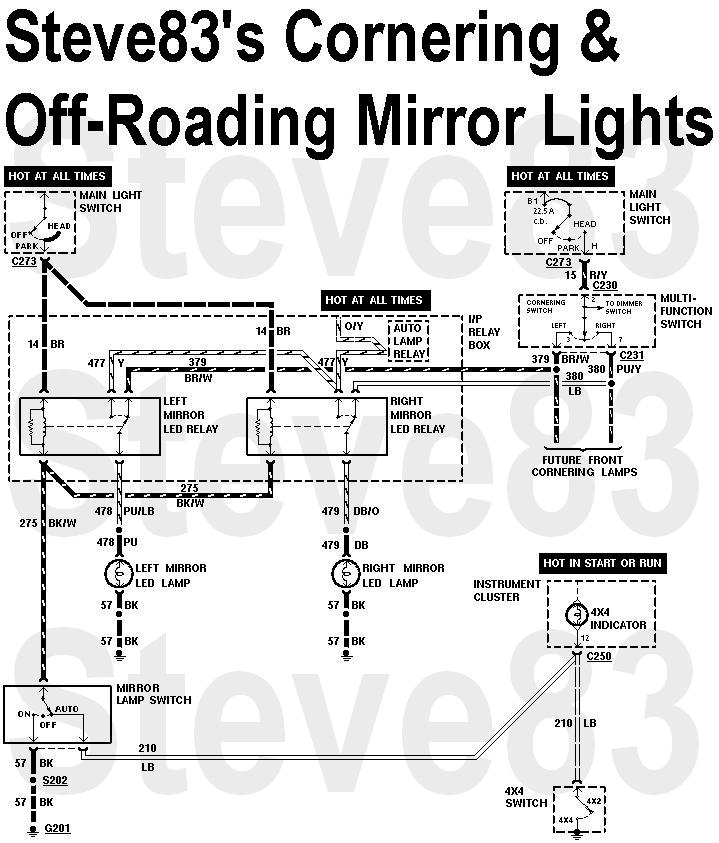

Cornering & Off-Roading Lights circuit for my mirror-mounted LED work lights in Ford/L/M vehicles with an MFS.
IF THE IMAGE IS TOO SMALL, click it.
NON-STANDARD WIRING - DO NOT USE FOR DIAGNOSIS
I created & added this circuit to my '93 Bronco wiring harness for these lights:
.
.
Even if the rest of the circuit fails, as long as the relays are installed, the cornering lights will always work (with headlights on) via the turn signal switch. The switch at the bottom L does NOT disable the (headlights-on) cornering light function - only the off-road function. Set to ON, it holds the lights on with the Parking lights, even with the key off.
![cnrmirlamps.jpg Cornering & Off-Roading Lights circuit for my mirror-mounted LED work lights in Ford/L/M vehicles with an MFS.
IF THE IMAGE IS TOO SMALL, click it.
NON-STANDARD WIRING - DO NOT USE FOR DIAGNOSIS
I created & added this circuit to my '93 Bronco wiring harness for these lights:
[url=http://www.supermotors.net/registry/media/925116][img]http://www.supermotors.net/getfile/925116/thumbnail/slimled.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/925588][img]http://www.supermotors.net/getfile/925588/thumbnail/slimlfd.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/979924][img]http://www.supermotors.net/getfile/979924/thumbnail/34led.jpg[/img][/url]
Even if the rest of the circuit fails, as long as the relays are installed, the cornering lights will always work (with headlights on) via the turn signal switch. The switch at the bottom L does NOT disable the (headlights-on) cornering light function - only the off-road function. Set to ON, it holds the lights on with the Parking lights, even with the key off.](https://www.supermotors.net/getfile/965719/fullsize/cnrmirlamps.jpg)
