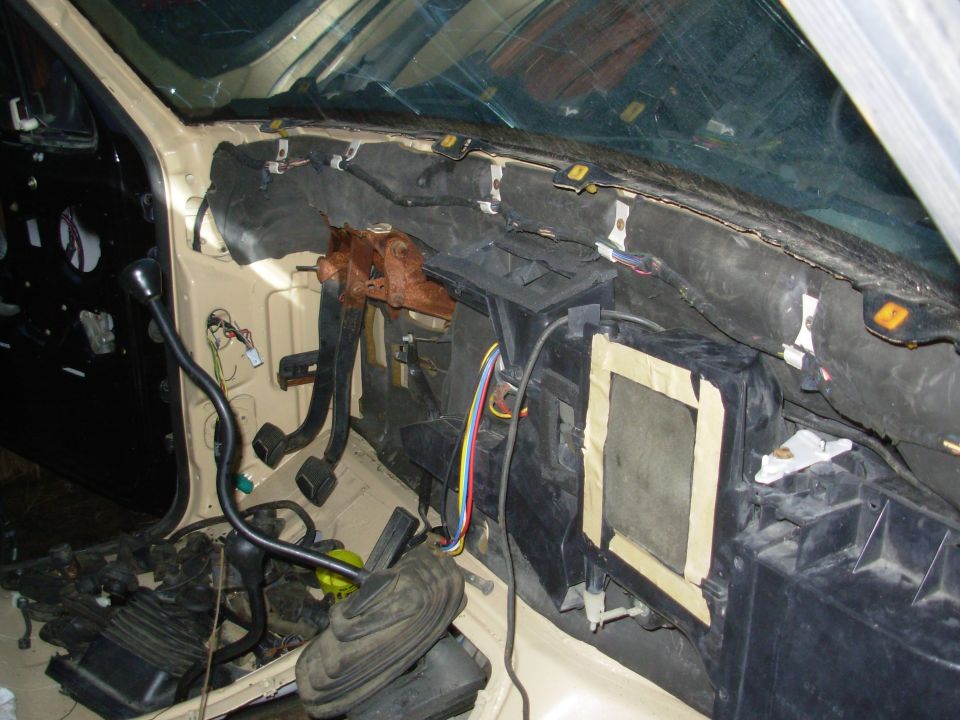

29doorwirink.jpg The driver's door harness is routed along the bottom of the w/s thru the white clips that also support the firewall insualtion.

ERROR: the white plastic hooks are installed upside-down in this pic.  I had to remove them all & install them correctly before the dash would fit.

[url=http://www.supermotors.net/registry/media/986058][img]http://www.supermotors.net/getfile/986058/thumbnail/36fwrl.jpg[/img][/url]
29doorwirink.jpg | Hits: 1397 | Posted on: 2/22/13 | View original size (2.37 MB)

The driver's door harness is routed along the bottom of the w/s thru the white clips that also support the firewall insualtion.

ERROR: the white plastic hooks are installed upside-down in this pic. I had to remove them all & install them correctly before the dash would fit.
