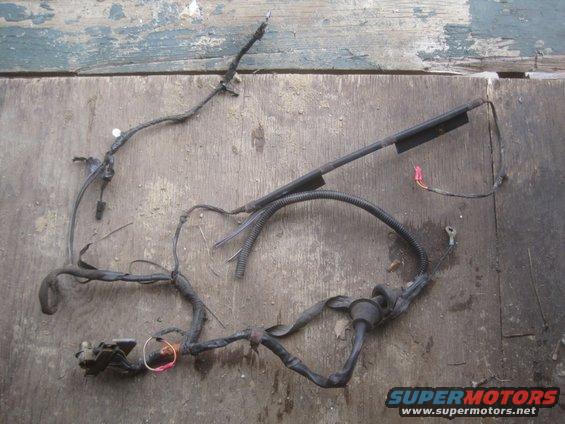

tailgate-harness-(1).jpg 95 Bronco Tailgate harness with Defrost. Upper left of pic is the defrost connections, upper right with the plastic panels is the window motor wire, bottom right is the wire to the truck side connection and bottom left is the key lock cylinder switch connection. Further detail pics follow. Additional tailgate parts are available as well...
tailgate-harness-(1).jpg | Hits: 150 | Posted on: 3/27/13 | View original size (264.98 KB)

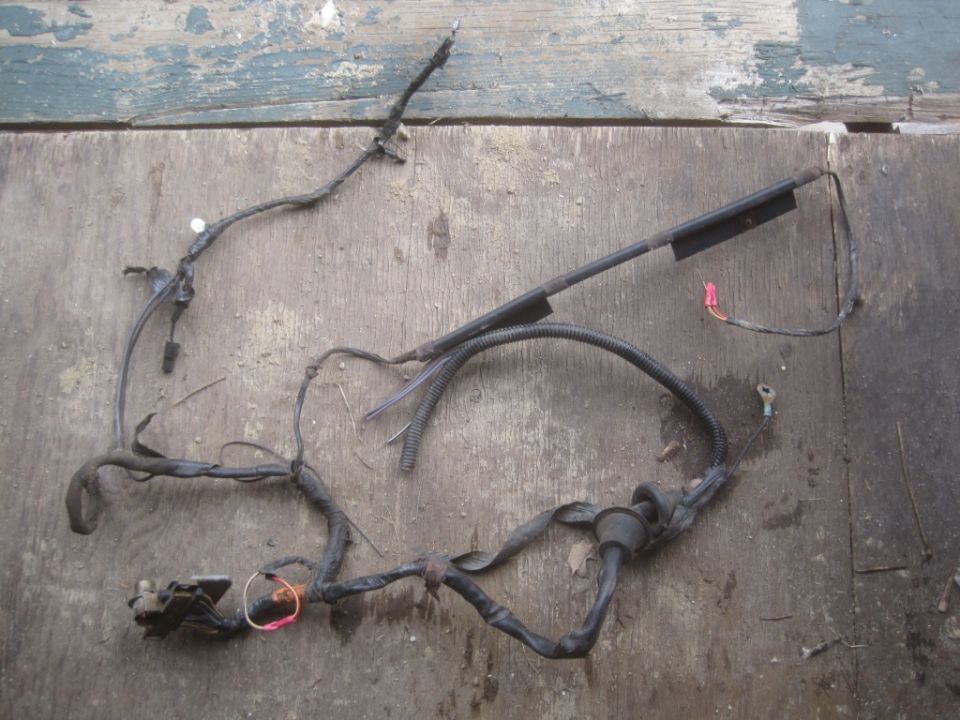

95 Bronco Tailgate harness with Defrost. Upper left of pic is the defrost connections, upper right with the plastic panels is the window motor wire, bottom right is the wire to the truck side connection and bottom left is the key lock cylinder switch connection. Further detail pics follow. Additional tailgate parts are available as well...
