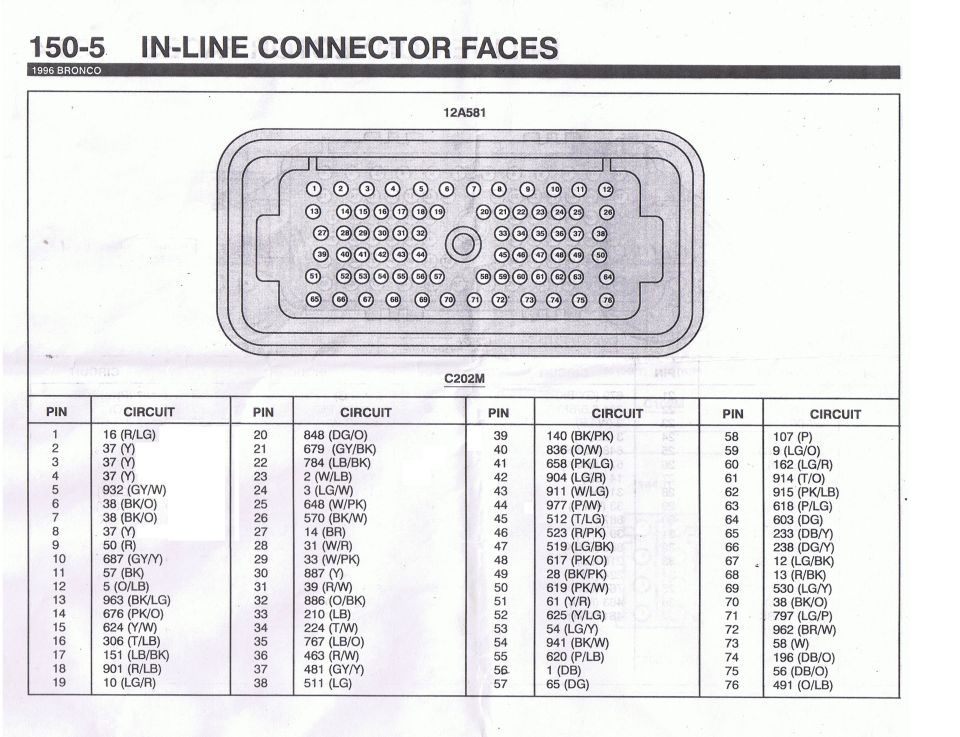

The pinout of main firewall connector (C202 connector) for a 96 Bronco. It has a slightly different pinout than the F-series trucks connector which can cause problems if interchanged like I found out.
Most pins are the same between the 2 which allows the engine to run and most thing work. main differences I have found are from 4WABS pin locations (including the VSS signal wires which will affect automatic trannys).
Different years also seem to have different pinouts based on Steve83's diagram of a 93s connector, you can also use his diagram to find out what MOST of the circuits stand for. view it here
![bronco.jpg The pinout of main firewall connector (C202 connector) for a 96 Bronco. It has a slightly different pinout than the F-series trucks connector which can cause problems if interchanged like I found out.
[url=http://www.supermotors.net/registry/media/984834][img]http://www.supermotors.net/getfile/984834/thumbnail/fseries.jpg[/img][/url]
Most pins are the same between the 2 which allows the engine to run and most thing work. main differences I have found are from 4WABS pin locations (including the VSS signal wires which will affect automatic trannys).
Different years also seem to have different pinouts based on Steve83's diagram of a 93s connector, you can also use his diagram to find out what MOST of the circuits stand for. view it here
[url=http://www.supermotors.net/registry/media/909442_1][img]http://www.supermotors.net/getfile/909442/thumbnail/c202205-93b.jpg[/img][/url]](https://www.supermotors.net/getfile/984833/fullsize/bronco.jpg)
