35g400.jpg | Hits: 1682 | Posted on: 6/7/13
| View original size (582.4 KB)

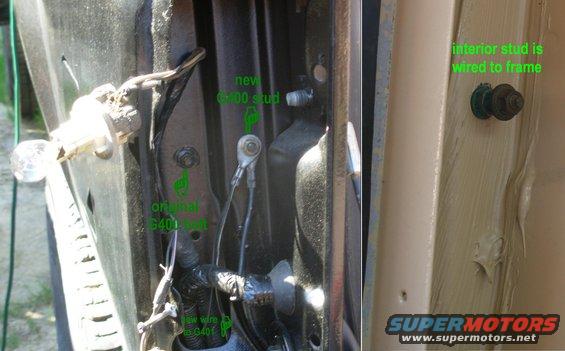

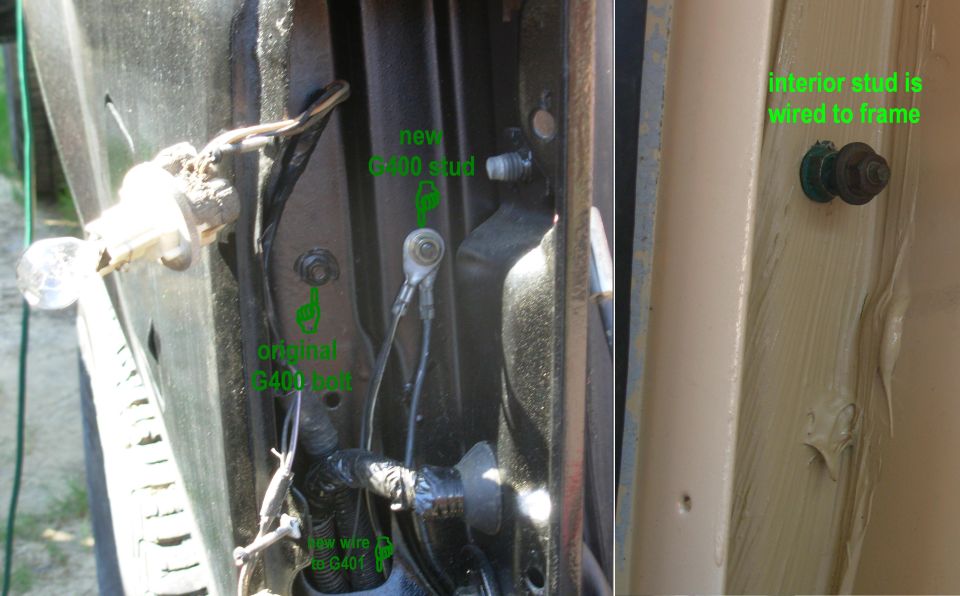

To ensure any new internal grounds are thoroughly connected to the frame, body, & batteries, I changed the G400 bolt to a stud that passes through the body, and added a wire from it to G401 on the frame (the trailer connector ground).
![35g400.jpg To ensure any new internal grounds are thoroughly connected to the frame, body, & batteries, I changed the G400 bolt to a stud that passes through the body, and added a wire from it to G401 on the frame (the trailer connector ground).
