powermirrorswitchlogic.jpg Mirror Switch Logic Table & Pinouts To use an Explorer switch in a Bronco/F, simply move the wires in the connector to match the switch you want to install. See also: [url=https://www.supermotors.net/registry/media/576977_1][img]https://www.supermotors.net/getfile/576977/thumbnail/mirrorflagmount.jpg[/img][/url]
powermirrorswitchlogic.jpg | Hits: 1877 | Posted on: 10/18/13 | View original size (162.77 KB)

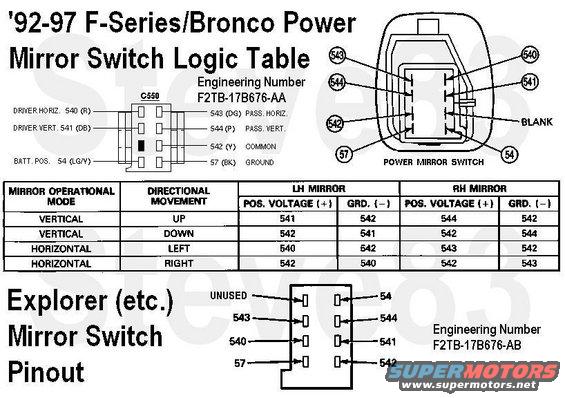

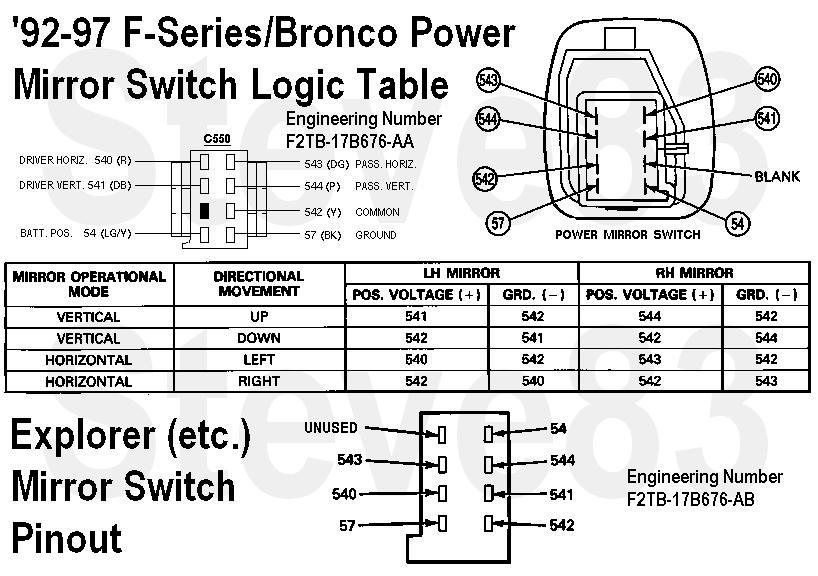

Mirror Switch Logic Table & Pinouts


To use an Explorer switch in a Bronco/F, simply move the wires in the connector to match the switch you want to install.
