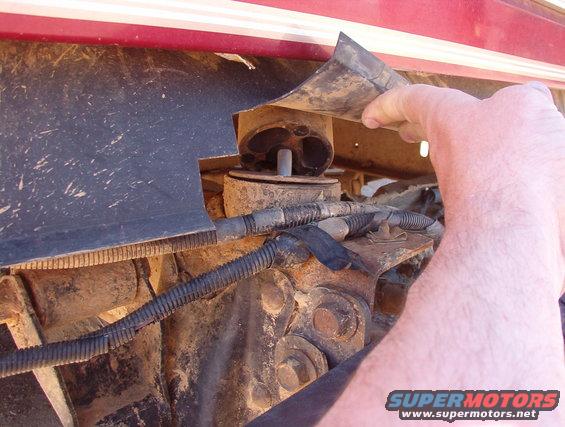

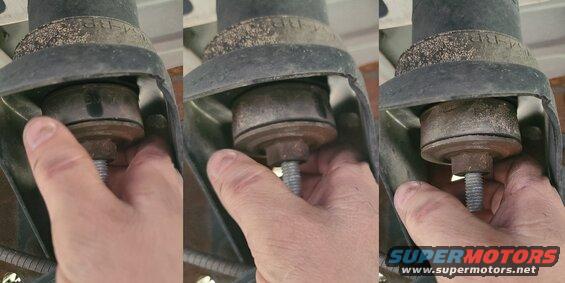

A quick way to check body mounts is to mark the lower isolator & then try to turn it by hand. If it spins, the upper is collapsed, or there's some other problem (rust, collision damage, etc.).
IF THE IMAGE IS TOO SMALL, click it.

See also:

Body Mounts for 1994 Bronco ('80-96 similar; F-series cab mounts similar)
IF THE IMAGE IS TOO SMALL, click it.

The rear 3 Bronco mounts (including upper steel shells) are 3.25"OD x 1.375"H(uppers - space between frame & body).
The front 2 Bronco mounts are 1.25"H.

The rear bolts (view V) are 7/16"x14(NC) 6.5" long threaded 2.5" with a 5/8" head with large integral washer.
The 6 identical bolts are 7/16"x14(NC) 3.75" long threaded 2.5" with a 5/8" head with small integral washer.
The front bolts (view Z) are M12x1.75 100mm FULLY THREADED w/15mm head & small integral washer.


Despite the warning in this diagram (which was created in the early 80s), modern silicone grease is safe to use on vulcanized rubber mounts, and recommended with polyurethane.

Note that the necked portion of the upper sleeve (part of the upper absorber) is designed to lock onto the lower sleeve (flared assembly nut) to hold the rubber in place on the frame on the assembly line. But it funnels dirt & water in around the 2 parts & the bolt threads, usually rust-welding them together. So the longer they're soaked with penetrating oil before disassembly, the more likely they are to come apart.

Once the bolt is backed out a few turns, spray more penetrant down into the upper sleeve to rinse the rust off the threads, and use a hammer & drift on the bolt head to separate the sleeves.

The core support mount (views U & Z) is different, and the bolt threads into it from below. It's very difficult to separate them because the bolt usually rusts to the upper shell. They sometimes have to be cut apart and replaced, but the first link below shows how to unscrew them.

See also:

. . . . . . . . . .

'78-96 Bronco Body Mount Set Energy 4.4109G
IF THE IMAGE IS TOO SMALL, click it.

For the #2 mounts to clamp onto the frame properly, the well in the lower mount must be enlarged to fit the snout of the upper.



I've reported this issue to Energy twice now - no change yet...

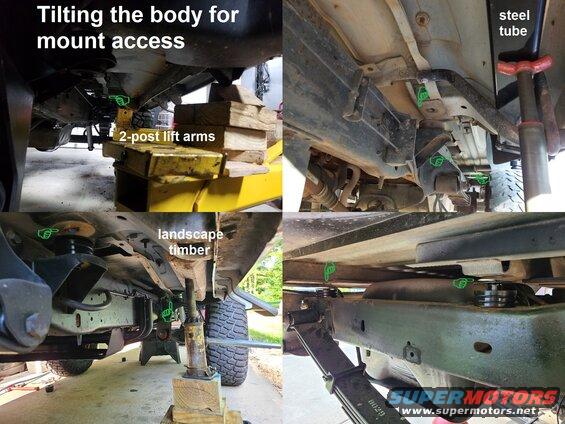

Body Mount Access
IF THE IMAGE IS TOO SMALL, click it.

In most cases, the easiest way to change the body mounts is to remove the bolts along one frame rail, loosen the others, and then lift one side to swap its upper isolators & shells. Then replace those bolts loosely, remove the other rail's bolts, and repeat before re-installing all the bolts to spec.

Before lifting or tilting a Bronco body, remember to unattach the filler neck by removing these 3 screws, and sliding off the outermost hose clamp under the body.

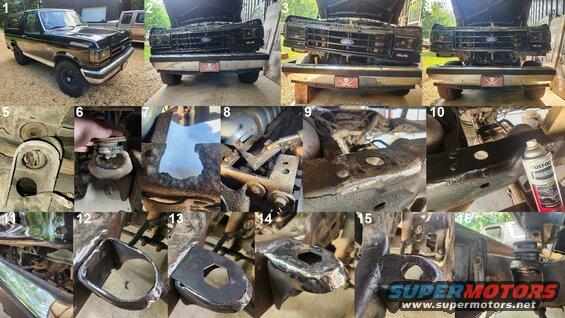

Body Mount Frame Repair
IF THE IMAGE IS TOO SMALL, click it.

This frame had rusted away so badly that common frame-savers weren't big enough. I had to get custom patches made locally to weld in. Fortunately, it's not very difficult to separate the body from the frame enough to get access for cutting & welding. This only took a couple of days.

See also:
.

Even fully-assembled, it's easy to put these vise-grips on the upper core support shell so that the bolt can be unscrewed from it.
IF THE IMAGE IS TOO SMALL, click it.

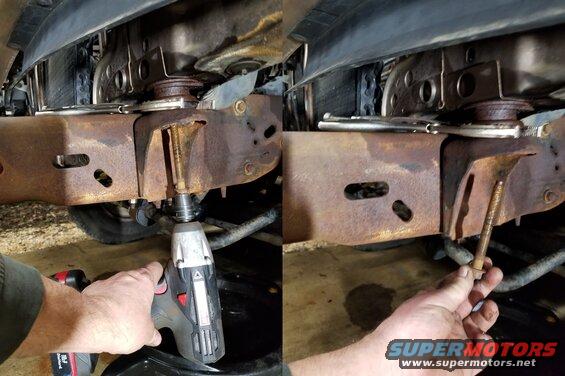

After removing the nut from the top (core support mount ONLY), remove the bolt from below.
IF THE IMAGE IS TOO SMALL, click it.

Front Body Mount (Core Support) Bolt
IF THE IMAGE IS TOO SMALL, click it.

The front bolts are M12x1.75 100mm FULLY THREADED w/15mm head & small integral washer.
The 6 identical bolts are 7/16"x14(NC) 3.75" long threaded 2.5" with a 5/8" head with small integral washer.
The rear bolts are 7/16"x14(NC) 6.5" long threaded 2.5" with a 5/8" head with large integral washer.

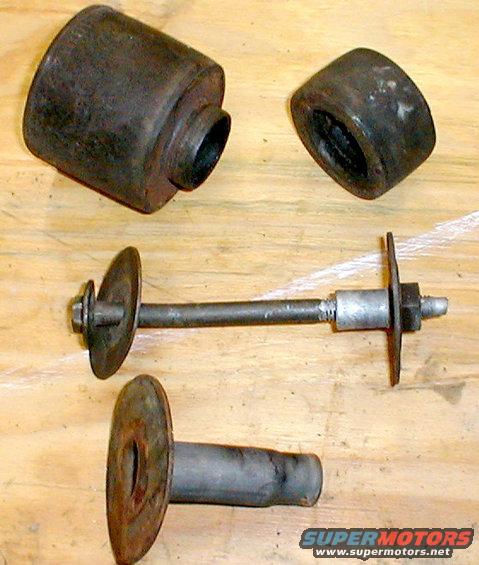

These are the basic parts of Ford truck body mounts (cab, NOT bed). Note that the necked portion of the upper sleeve (alone at the bottom of the photo) is designed to lock onto the lower sleeve (on the R end of the bolt) to hold the rubber in place on the frame on the assembly line. But it funnels dirt & water in around the 2 parts & the bolt threads, usually rust-welding them together. So the longer they're soaked with penetrating oil before disassembly, the more likely they are to come apart.

Once the bolt is backed out a few turns, spray more penetrant down into the upper sleeve to rinse the rust off the threads, and use a hammer & drift on the bolt head to separate the sleeves. An air hammer can save some fingernails. They sometimes have to be cut apart and replaced. Always make the cut as HIGH as possible above the frame (close to the body).

The core support mount is different, and the bolt threads into it from below. It's virtually impossible to unscrew the bolt intact because of battery acid &/or road salt eating the bolt away, as shown later in this album.

See also:
. . . .

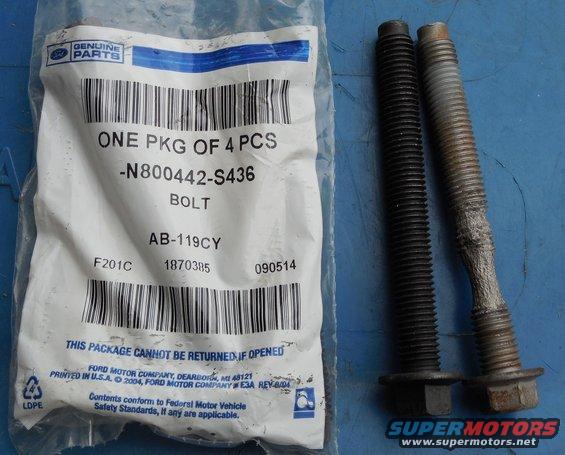

Bronco Body Mount Bolts
IF THE IMAGE IS TOO SMALL, click it.

The front bolts are M12x1.75 100mm FULLY THREADED w/15mm head & small integral washer.
The 6 identical bolts are 7/16"x14(NC) 3.75" long threaded 2.5" with a 5/8" head with small integral washer.
The rear bolts are 7/16"x14(NC) 6.5" long threaded 2.5" with a 5/8" head with large integral washer.

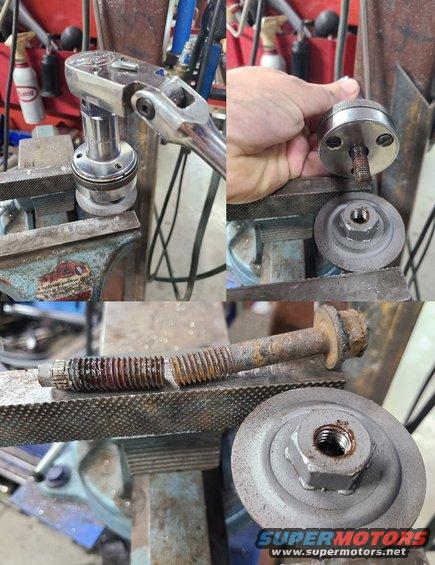

Bolt Extraction
IF THE IMAGE IS TOO SMALL, click it.

A bolt that shears off inside a lower mount may be extracted by screwing it out through the nut (AFTER soaking with penetrating oil, and some beating to break up the rust).

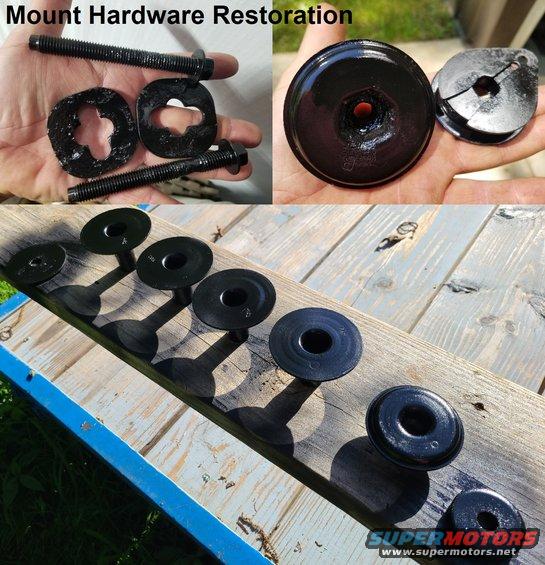

Hardware Restoration
IF THE IMAGE IS TOO SMALL, click it.

If possible, sandblasting & painting the hardware will reverse some age damage, and slow further damage.

SOLD Body Mount Hardware from '96 Bronco 7/16"-14tpi

Does not include core support parts, which are even harder to find & remove intact than these.

See also:
. . . .

The front bolts are M12x1.75 100mm FULLY THREADED w/15mm head & small integral washer.
The 6 identical bolts are 7/16"x14(NC) 3.75" long threaded 2.5" with a 5/8" head with small integral washer.
The rear bolts are 7/16"x14(NC) 6.5" long threaded 2.5" with a 5/8" head with large integral washer.

This is what happens if you let the body mounts collapse & get loose.



...for a LONG time.

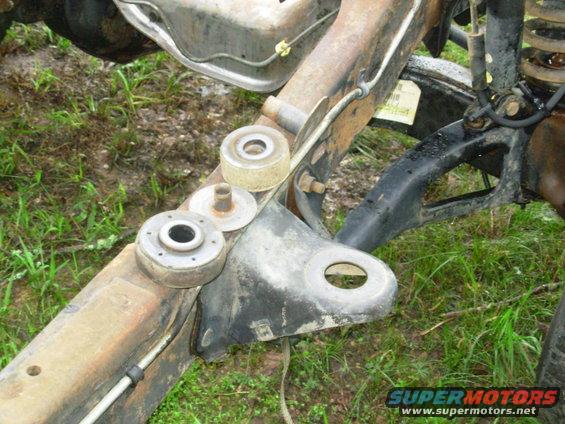

This frame perch originally had a round hole, for the early-style core support mount. Later trucks have a hex hole here.

These body bushings are Daystar polyurethane, and they've been on this truck for several years. After this pic, they were reused for ~13 more. Then they were transferred to another body & frame, where they're still in use and holding up fine. If I had bought rubber replacements, I'd have gone through several more sets by now.

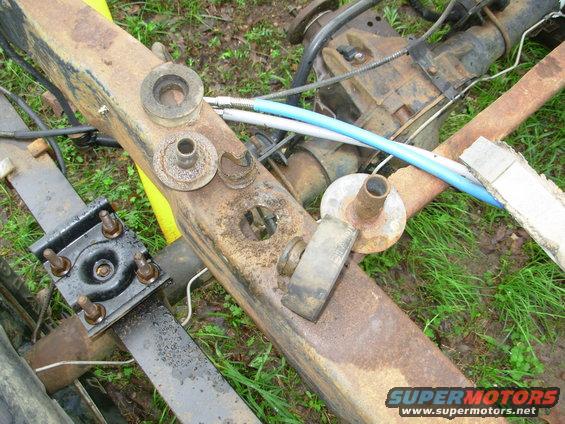

I'm obviously doing a lot more to this truck, but changing all the body mounts CAN be done with the body & core support in-place. Loosen the bolts on ONE frame rail and use a 4x4 & jack under the door to lift the body enough to work. If necessary, disconnect the steering intermediate shaft and (Bronco only) the fuel filler neck. If a pressure washer isn't available, dental picks & a shop vac will also work to remove the rust packed in the front mounts.

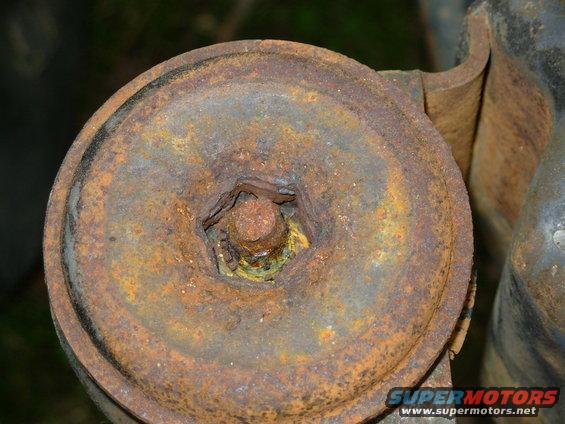

This is how the core support mount wells should look on a later-model truck after a few rounds of pressure-washing: roughly 1/2" deep with an obvious hex contour. Note that the threads are essentially GONE from the section that has been covered in dirt, rust, battery acid, & road salt.

. . . . .

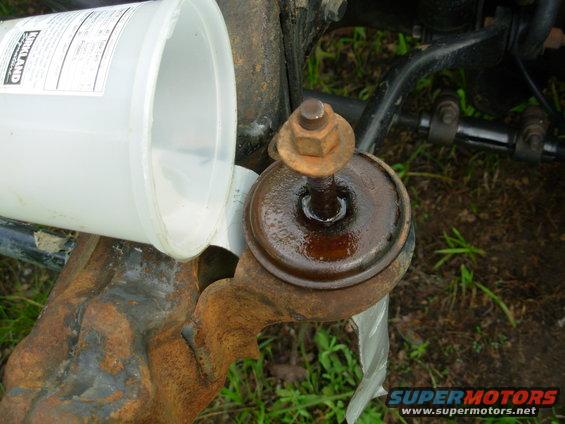

After the wells are as clean as possible, FILL them with penetrating oil (PB Blaster, Liquid Wrench, Kroil, etc.) and let it soak in for a few days. Since mine is outdoors, I had to cover them to prevent rain from lifting the oil out of the wells. But this can be done with the body in-place.

.

After a few days of soaking, I hammered the bolt tip to help loosen the threads, and then warmed them up with a propane torch just short of setting the oil & rubber on fire. These large-jaw Vise Grip 12L3 seem to be made for this job, and the handle rests perfectly against the frame. Again: this WILL work with the body & bumper in-place.

.

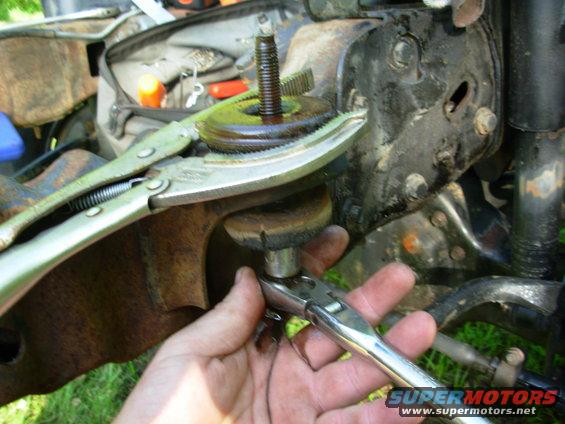

With the top washer held by the large-jaw Vise Grip 12L3, it's easy to concentrate on the bolt. I started working it back & forth VERY slightly, and adding oil to the top. Eventually, it began turning...

.

When the section of rusted threads cleared the washer's threads, much of the oil dumped out, so be prepared for it. Add more to rinse the threads clean, and push the bolt down from the top while turning to re-engage the good threads.
Large-jaw Vise Grip 12L3

.

The top section is much easier, but keep the threads wet with penetrating oil.
Large-jaw Vise Grip 12L3

. . . . .

The extent of the damage to the threads is obvious once the bolt is nearly out.

.

Although the bolt & lower insulator look 100 years old, the upper insulator (on the frame perch) & shell (in the large-jaw Vise Grip 12L3) look nearly new.

. . . . .

Despite the severe rust, this hardware can be reused to install new insulators; preferrably polyurethane. After more cleaning, coat the threads with anti-seize, and paint or undercoat the frame perch to slow future rust. Primer/seal the body mount shells.
Large-jaw Vise Grip 12L3

. . . . .

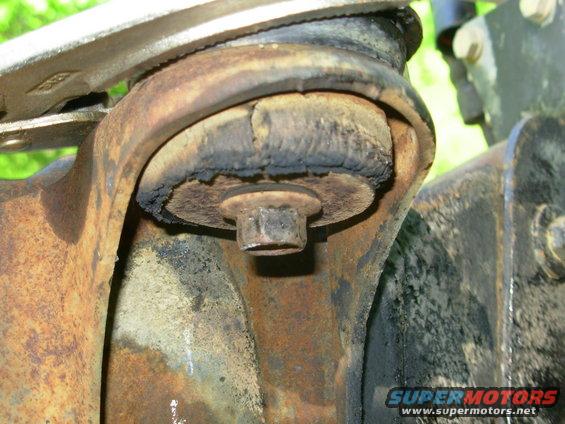

Due to battery acid, the passenger side is invariably worse than the driver's. This bolt sheared as the nut was removed, but I still want to try to unscrew it from the mount.

. . . . .

Like the driver's side, it soaked for several days in penetrant.

.

It's warmed up & ready to go...
Large-jaw Vise Grip 12L3

. . . . .

This one was slower to start, but obviously took less time to finish.

. . . . .

Drain Washer

Body mounts are notorious for collecting water, mud, & salt (especially the RHF which also collects battery acid), resulting in severe corrosion even on well-maintained trucks South of the salt belt. So to reduce future problems (I HOPE), I've packed these with anti-seize (Winzer AF-1600, Permatex 80078 ), and added a flat washer to cover the gaps in the top factory washer, and then grooved the lower washer to create drains. I SHOULD have grooved the lower bushing's bottom surface, but I didn't think about it in time.

The original lower washer is too thin to groove, and it's bonded to the rubber.

. . . . .

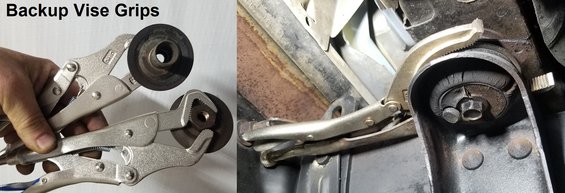

Backups
IF THE IMAGE IS TOO SMALL, click it.

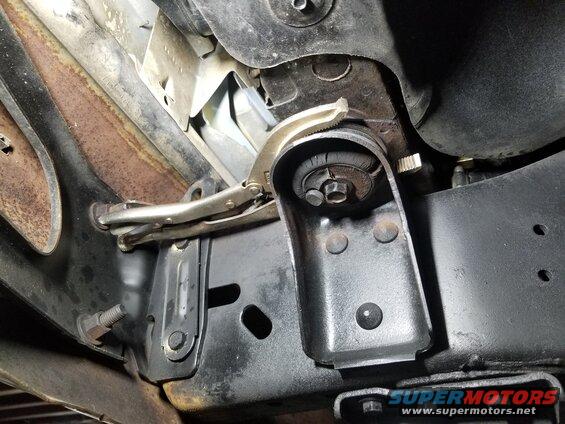

When working alone, it's convenient to have a backup that doesn't need to be held - particularly on the #4 positions.
Large-jaw Vise Grip 12L3
Hex-jaw Vise Grip 10LW

The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt head sharply with a ball-peen or dead-blow hammer to separate the sleeves. It's slightly more effective to do this WHILE the body is still resting on the mounts because that preloads the rubber, making it bounce less. The #2 insulators are slightly different from #3-5, so keep their parts separate from those.

. . . .

The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt head sharply with a ball-peen or dead-blow hammer to separate the sleeves. It's slightly more effective to do this WHILE the body is still resting on the mounts because that preloads the rubber, making it bounce less. The steel reinforcement in this upper insulator had rusted enough to rip through the rubber & adhere to the frame.

. . . .

The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt head sharply with a ball-peen or dead-blow hammer to separate the sleeves. It's slightly more effective to do this WHILE the body is still resting on the mounts because that preloads the rubber, making it bounce less. The #2 insulators are slightly different from #3-5, so keep their parts separate from those.

. . . .

The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt head sharply with a ball-peen or dead-blow hammer to separate the sleeves. It's slightly more effective to do this WHILE the body is still resting on the mounts because that preloads the rubber, making it bounce less.

. . . .

The other body mounts are much simpler to remove. Simply back out the bolt until no threads are showing below the nut, then strike the bolt head sharply with a ball-peen or dead-blow hammer to separate the sleeves. It's slightly more effective to do this WHILE the body is still resting on the mounts because that preloads the rubber, making it bounce less.

. . . .

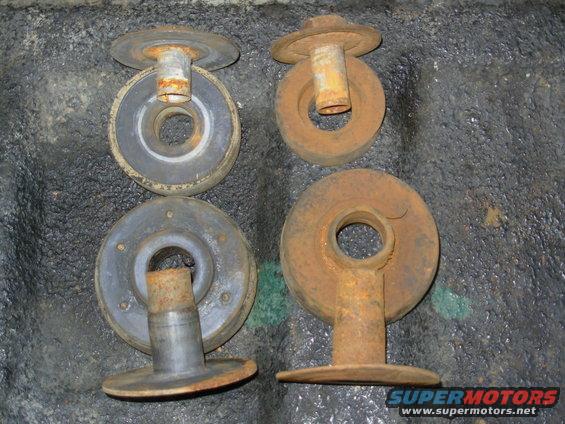

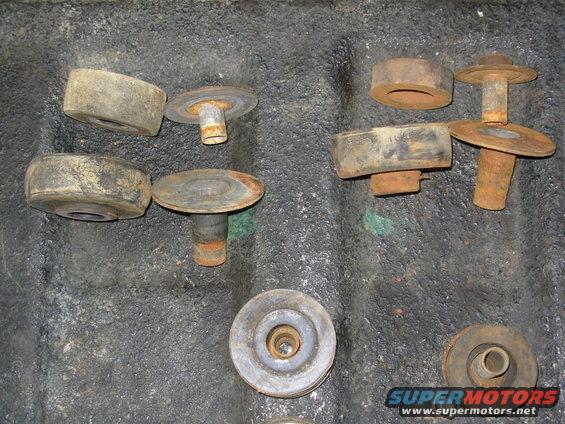

'93 Bronco body mounts, except the core support mounts

. . . .

'93 Bronco body mounts
The larger ones (top Left in the pic) are for the #2 position.

. . . .

'93 Bronco body mounts
The larger ones (top Left in the pic) are for the #2 position.

. . . .

'93 Bronco body mounts
The larger ones (Left in the pic) are for the #2 position.

. . . .

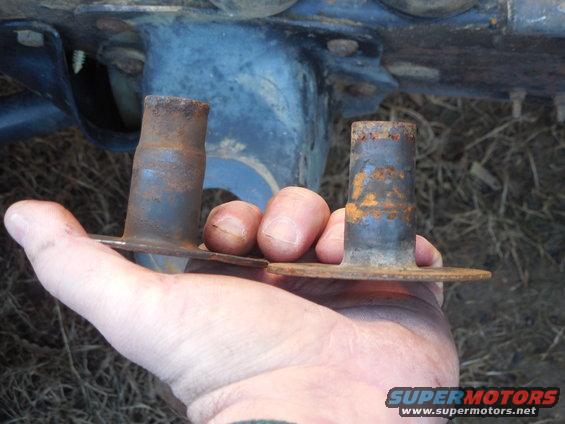

The sleeve for the #2 body mount (in the footwells) is different from all the others: its necked section is much shorter, even though the tube is the same length. To ID it on the assembly line, it has "FRT" stamped into the flange. The others have "MS2".

The sleeve for the #2 body mount (in the footwells) is different from all the others: its necked section is much shorter, even though the tube is the same length.

The mounts on the '93EB have been fighting me (and winning) for the past 3 months. I've only separated 2, and the nut ripped off another. I assume it's because the body is off them, so the rubber is unloaded, and is absorbing too much of the impacts. So I'm building this tool to support the top sleeves while I drive the lowers out.

I've been trying to cut this inner sleeve using an air-hammer bit, but even with a 12# sledge, it wasn't working. This tool is going between the upper isolator (rubber mount) and the upper sleeve's flange to add some preload to the rubber.

It worked, and I was able to cut enough of the inner sleeve to release it. I was also able to remove the burrs & weld the nut back on so it can be reused.

After thoroughly wire-wheeling them, and removing the burrs from the tube, I welded the 7/16"-14tpi nut back to the sleeve.

They've all been PsITA, but this one takes the cake. I had to make a 2nd tool with a smaller throat because the steel kept bending into a funnel.

After soaking with at least 4 kinds of penetrating oil for 3 months, I expected to see SOME wetness on the outside of the lower sleeve, but it's totally dry. No wonder this one was the hardest to get out.

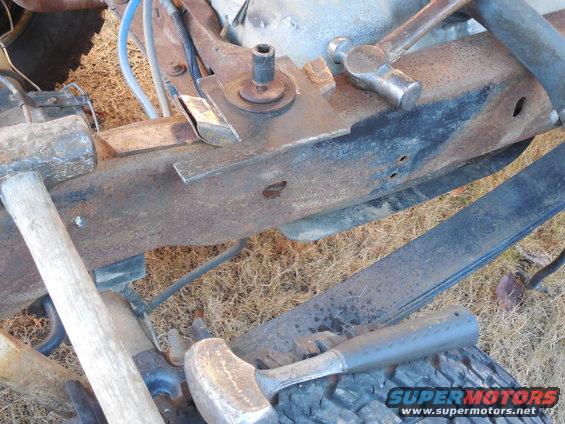

I dropped a deep socket over the tube, set the flange on the frame, and sledge-hammered it back into shape.

Most came apart relatively easily after both tools were inserted.

Early body mount bolt covers are steel, screwed down. But the jute backing usually holds water and rusts the screw heads off. Swapping to the later plugs is a good upgrade, but the front plugs are much larger than the middle 2 sets. Since the (Bronco only) rear bolt heads are in direct contact with the jute, their heads may be rust-damaged. They can be repaired by CAREFULLY filing the hex down to the next size so a socket fits. But the rusted & filed steel is much softer than the original surface, so replacement bolts should be installed.

'80-96 Body Mounts DAYSTAR

I don't recommend the technique shown in the lower L because there's a risk of bunging the threads that have to pass thru the nut. Doing the same thing with the bolt installed in the normal direction (but loosened) and striking the head eliminates this possibility.

See also:
.

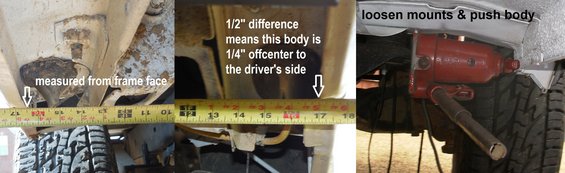

Body Centering
IF THE IMAGE IS TOO SMALL, click it.

When the rubber mounts collapse, they allow the body to slide on the frame, causing various alignment issues & interference (often observed in the fan shroud, bumpers, fuel filler hose, manual shifters, & tires rubbing the body on one side differently than on the other).



Use a jack to push it back to center. If the mounts have already been replaced (I only use black Energy polyurethane kits), they may need to be loosened before pushing. Also check the bumpers' positions, and adjust as needed. The front bumper's frame tabs may need adjustment as shown on this & the NEXT few pages:

This truck was hit REALLY hard, but the body shouldn't have shifted THIS much.

See the NEXT pic...

See also:
. . . . . .

Here's why the body slid during the impact. Not only does it have a body lift - several bolt heads pulled thru the cheapo washers, allowing the bolts to bend & the body to slide around on the frame. A slightly harder impact (or rollover) could have separated the body from the frame, which would have opened the fuel tank (among other fun things).

See also:
. . . . . . .

This is your truck on a body lift...
